產品介紹

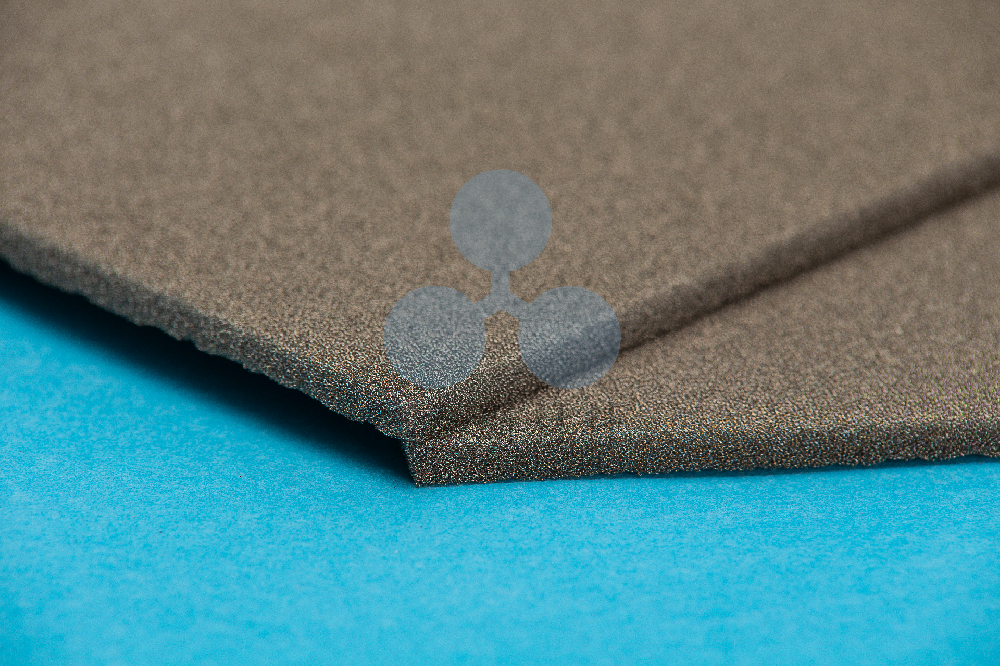

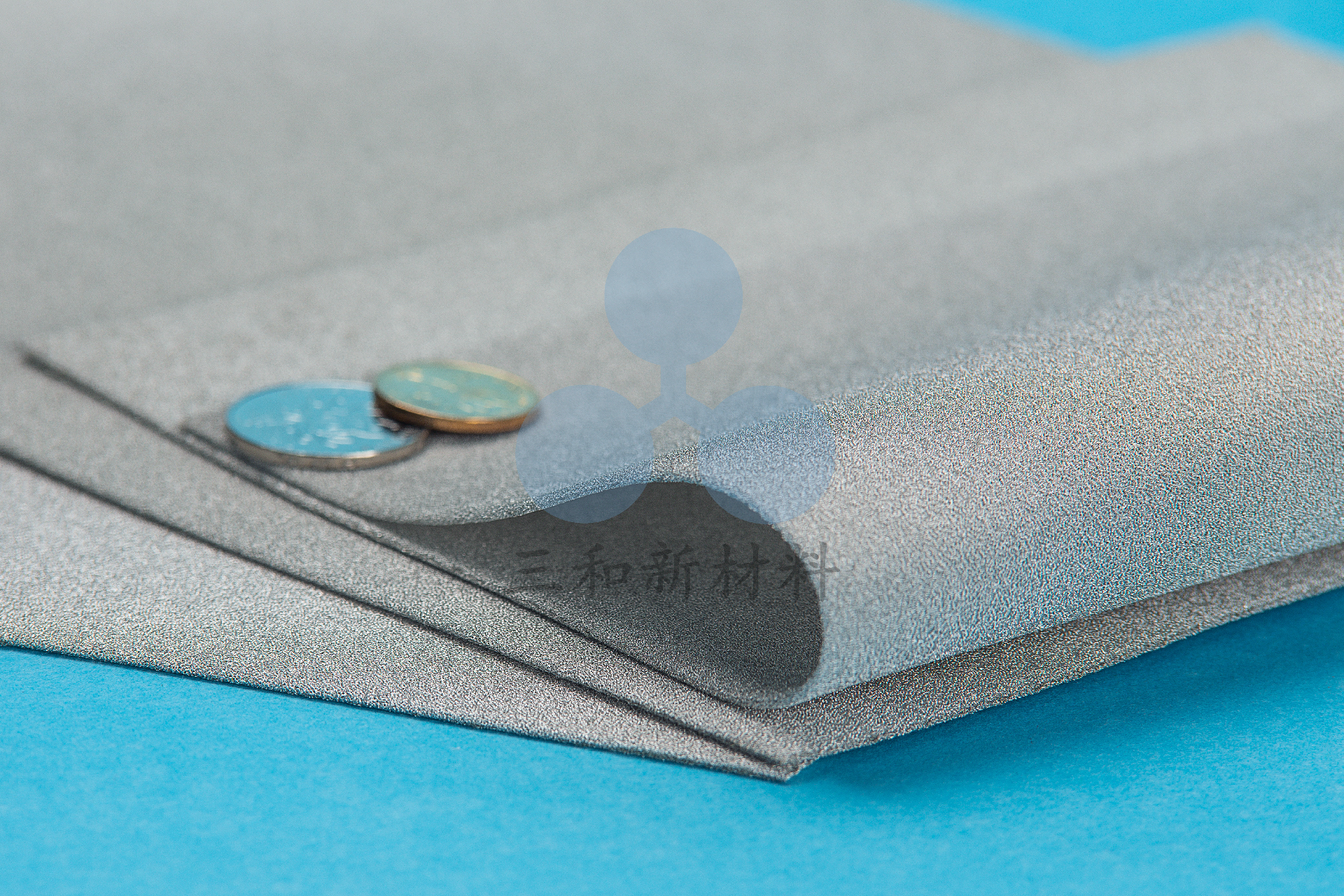

該產品以聚氨酯發泡海綿為基體，經過PVD導電化處理和電沉積金屬鎳、銅等加厚處理，使海綿各個方位均導電。產品具有導電性好、結合力強、屏蔽效能高、回彈性佳、性能穩定等特性,是目前應用廣泛的EMI/ESD材料。
◎ 產品規格
導電海綿規格表
| 序號 | 類型 | 名稱 Name | 型號 （model number） | 厚度 thickness (mm) | 寬幅 width （mm） | 表面電阻（Ω） | 垂直電阻 （Ω） | 延伸率 （%） | 抗拉強度（N/20mm) | 備注 |
| 1 | R （普通密度） | 0.6T導電海綿 | HGP-R06 | 0.6±0.1 | ≥1020 | ≤0.8 | ≤0.05 | ≥40 | ≥0.8 | |
| 2 | 0.6T孔加密導電海綿 | HGP-R06C | 0.6±0.1 | ≥1020 | ≤0.8 | ≤0.05 | ≥30 | ≥0.8 | ||
| 3 | 0.6T孔加密導電海綿 | HGP-R06B | 0.6±0.1 | ≥1020 | ≤0.8 | ≤0.05 | ≥30 | ≥0.8 | ||
| 4 | 0.7T導電海綿 | HGP-R07 | 0.7±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥40 | ≥1.0 | ||
| 5 | 0.8T導電海綿 | HGP-R08 | 0.8±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥40 | ≥1.2 | ||
| 6 | 0.9T導電海綿 | HGP-R09 | 0.9±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥40 | ≥1.2 | ||
| 7 | 1.0T導電海綿 | HGP-R10 | 1.0±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥50 | ≥1.5 | ||
| 8 | 1.1T導電海綿 | HGP-R11 | 1.1±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥50 | ≥1.5 | ||
| 9 | 1.2T導電海綿 | HGP-R12 | 1.2±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥50 | ≥1.5 | ||
| 10 | 1.3T導電海綿 | HGP-R13 | 1.3±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥45 | ≥2.0 | ||
| 11 | 1.4T導電海綿 | HGP-R14 | 1.4±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥45 | ≥2.0 | ||
| 12 | 1.6T導電海綿 | HGP-R16 | 1.6+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥45 | ≥2.5 | ||
| 13 | 1.7T導電海綿 | HGP-R17 | 1.7+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥45 | ≥2.5 | ||
| 14 | 1.7T孔加密導電海綿 | HGP-R17C | 1.7+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥45 | ≥2.5 | ||
| 15 | 1.8T導電海綿 | HGP-R18 | 1.8+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥45 | ≥3.0 | ||
| 16 | 2.1T導電海綿 | HGP-R21 | 2.1+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥35 | ≥3.5 | ||
| 17 | 2.2T導電海綿 | HGP-R22 | 2.2+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥35 | ≥3.5 | ||
| 18 | 2.2T孔加密導電海綿 | HGP-R22C | 2.3+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥35 | ≥3.5 | ||
| 19 | 2.3T導電海綿 | HGP-R23 | 2.4+0/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥35 | ≥3.5 | ||
| 20 | 2.6T導電海綿 | HGP-R26 | 2.6+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥4.0 | ||
| 21 | 2.7T導電海綿 | HGP-R27 | 2.7+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥4.0 | ||
| 22 | 2.7T孔加密導電海綿 | HGP-R27C | 2.7+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥4.0 | ||
| 23 | 3.0T導電海綿 | HGP-R30 | 3.0+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥4.5 | ||
| 24 | 3.1T導電海綿 | HGP-R31 | 3.1+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥4.5 | ||
| 25 | 3.2T導電海綿 | HGP-R32 | 3.2+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥5.0 | ||
| 26 | 3.4T導電海綿 | HGP-R34 | 3.4+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥5.5 | ||
| 27 | 3.5T導電海綿 | HGP-R35 | 3.5+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥5.5 | ||
| 28 | 3.6T導電海綿 | HGP-R36 | 3.6+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥6.0 | ||
| 29 | 3.7T導電海綿 | HGP-R37 | 3.7+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥6.0 | ||
| 30 | 4.0T導電海綿 | HGP-R40 | 4.0+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥6.5 | ||
| 31 | 4.1T導電海綿 | HGP-R41 | 4.1+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥6.5 | ||
| 32 | 4.2T導電海綿 | HGP-R42 | 4.2+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥7.0 | ||
| 33 | 4.5T導電海綿 | HGP-R45 | 4.5+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥7.5 | ||
| 34 | 4.7T導電海綿 | HGP-R47 | 4.7+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥7.5 | ||
| 35 | 4.8T導電海綿 | HGP-R48 | 4.8+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥8.0 | ||
| 36 | 5.1T導電海綿 | HGP-R51 | 5.1+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥8.0 | ||
| 37 | 5.2T導電海綿 | HGP-R52 | 5.2+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥8.0 | ||
| 38 | 5.4T導電海綿 | HGP-R54 | 5.4+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥8.0 | ||
| 39 | H （高密度） | 0.6T高密導電海綿 | HGP-H06 | 0.6±0.1 | ≥1020 | ≤0.8 | ≤0.01 | ≥30 | ≥0.6 | |
| 40 | 0.7T高密導電海綿 | HGP-H07 | 0.7±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥0.8 | ||
| 41 | 0.8T高密導電海綿 | HGP-H08 | 0.8±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥1.2 | ||
| 42 | 0.9T高密導電海綿 | HGP-H09 | 0.9±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥1.2 | ||
| 44 | 1.0T高密導電海綿 | HGP-H10 | 1.0±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥1.5 | ||
| 45 | 1.1T高密導電海綿 | HGP-H11 | 1.1±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥1.5 | ||
| 46 | 1.2T高密導電海綿 | HGP-H12 | 1.2±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥1.5 | ||
| 47 | 1.3T高密導電海綿 | HGP-H13 | 1.3±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥1.5 | ||
| 48 | 1.4T高密導電海綿 | HGP-H14 | 1.4±0.1 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥1.5 | ||
| 49 | 1.6T高密導電海綿 | HGP-H16 | 1.6+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.01 | ≥30 | ≥2.0 | ||
| 50 | 1.8T高密導電海綿 | HGP-H18 | 1.8±0.1 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥2.0 | ||
| 51 | 2.1T高密導電海綿 | HGP-H21 | 2.1+0.1/-0.2 | ≥1020 | ≤0.5 | ≤0.05 | ≥30 | ≥2.5 | ||
| 52 | CH （灰黑色導電海綿） | 0.6T高密度灰黑色導電海綿 | HGP-H06CH | 0.6±0.1 | ≥1020 | ≤1 | ≤0.05 | ≥30 | ≥0.8 | MOQ≥200m，其余厚度做灰黑色海綿可定制 |
| 53 | 0.8T普通密度灰黑色導電海綿 | HGP-R08CH | 0.8±0.1 | ≥1020 | ≤1 | ≤0.05 | ≥35 | ≥1.0 | ||
| 54 | 1.1T普通密度灰黑色導電海綿 | HGP-R11CH | 1.1±0.1 | ≥1020 | ≤1 | ≤0.05 | ≥45 | ≥1.5 | ||
| 55 | 1.2T普通密度灰黑色導電海綿 | HGP-R12CH | 1.2±0.1 | ≥1020 | ≤1 | ≤0.05 | ≥45 | ≥1.5 | ||
| 56 | 1.7T普通密度灰黑色導電海綿 | HGP-R17CH | 1.7+0/-0.2 | ≥1020 | ≤1 | ≤0.05 | ≥40 | ≥1.5 | ||
| 57 | 2.2T普通密度灰黑色導電海綿 | HGP-R22CH | 2.2+0/-0.2 | ≥1020 | ≤1 | ≤0.05 | ≥30 | ≥3.0 | ||
| 58 | 2.7T普通密度灰黑色導電海綿 | HGP-R27CH | 2.7+0.1/-0.2 | ≥1020 | ≤1 | ≤0.05 | ≥30 | ≥3.5 | ||
| 59 | 3.2T普通密度灰黑色導電海綿 | HGP-R32CH | 3.2+0.1/-0.2 | ≥1020 | ≤1 | ≤0.05 | ≥30 | ≥4.0 | ||
| 60 | 3.7T普通密度灰黑色導電海綿 | HGP-R37CH | 3.7+0.1/-0.2 | ≥1020 | ≤1 | ≤0.05 | ≥30 | ≥4.5 | ||
| 61 | 4.2T普通密度灰黑色導電海綿 | HGP-R42CH | 4.2+0.1/-0.2 | ≥1020 | ≤1 | ≤0.05 | ≥30 | ≥5.0 | ||
| 62 | 5.2T普通密度灰黑色導電海綿 | HGP-R52CH | 5.2+0.1/-0.2 | ≥1020 | ≤1 | ≤0.05 | ≥30 | ≥7.0 | ||
| 備注：產品均符合歐盟REACH/ROHS 2.0/鹵素 法規要求。 | ||||||||||
◎ 產品用途
材料柔軟，輕巧，回彈性好，有多種厚度可供選擇，方便快速加工成各種規格使用。用于EMI(電磁干擾）屏蔽，ESD（防靜電）接地等，適用于制作各種I/O接口、襯墊、LCD靠墊及其他用途。
目前，產品廣泛用于等離子電視，液晶顯示器，液晶電視，手機，通訊設備，醫療儀器和軍工、航天領域等。
